제품 상세 정보:
결제 및 배송 조건:
|
| 힘 제안: | 380V 50Hz | 가동 방법: | 전기 |
|---|---|---|---|
| 두께: | 2-40mm (표준) | 급식 속도: | 1440r/min |
| 작동 방법: | 자동 급식 | 힘: | 2000W |
| 비스듬한 폭: | 1-18mm | 재료: | 금속 |
| 비스듬한 각: | 30' -60' | 스핀들 속도: | 0-1500r/min |
| 단 하나 비스듬한 폭: | 1-10mm | ||
| 하이 라이트: | 1440r/Min Plate Edge Beveling Machine,40mm Plate Edge Beveling Machine,Chamfering Plate Edge Beveling Machine |
||

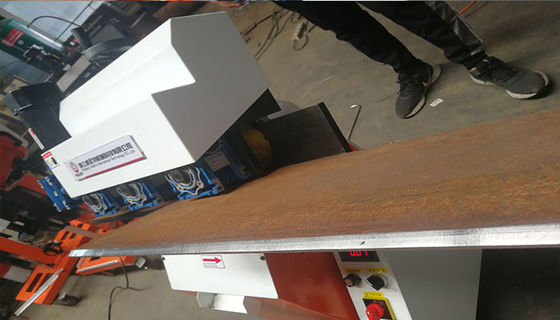

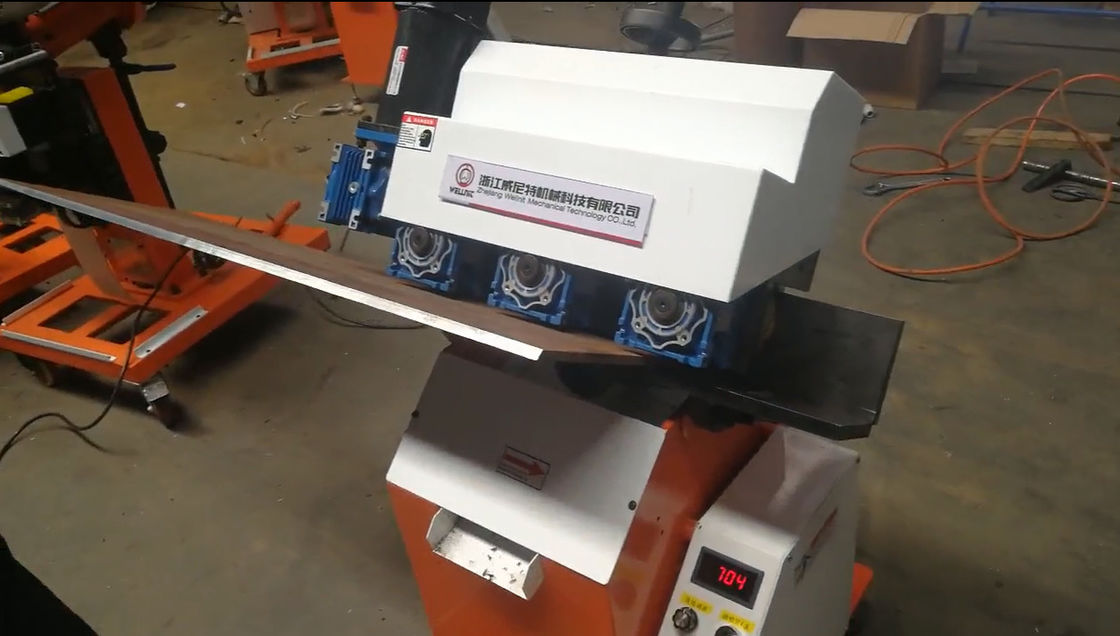

PB-20D Automatic moving and feeding for plate surface side milling machine for small plate
Machine Feature:
Semi-automatic precise chamfering machine, manual feeding, automatic clamping and automatic driving and reversing machine
1. Clamp mould and cutter head and carefully designed to ensure the center line of processed object and cutter head will not be changed. The processing of outer angle at tube end, inner angle and tube end can be finished uniformly in one time.
2. The speed can be changed by changing the belt pulley to adapt to different metal material and ensure the longest service life of cutter.
3. Feeding speed at two sections can save time and the slow speed can be easily adjusted to ensure perfect processing.
Specification:
| Power Supply | AC 380V 50HZ |
| Total Power | 1620W |
| Spindle Speed | 1440r/min |
| Feed Speed | 0-1500mm/min |
| Clamp Thinkness3 | 1-18mm |
| Clamp Width | 2-40mm |
| Processing Length | No limited |
| Bevel Angle | 30°-37.5° Adjustable |
| Single Bevel Width | 1-10mm |
| Bevel Width | 1-20mm |
| Bevel Plate | φ40mm |
| Cutter Qty | 12pcs |
| Workable Height | 200mm |
| Material | CS,SS,Aluminum,Composite |
| Net Weight | 80kg |
| Gross Weight | 90kg |
| Package Size | 600*700*900mm |
Non-standard machines are available according to customers’requirement.
Bevel result show:
Our machines in factory:
Packing:
Packaging: Standard machine will be ready and stabled in a wooden case.
Shipping: Able to support with any shipping method as per customer 's requirements.
| Single item |
| 600*700*900mm |
| 80.0 KG |
| Wooden Case |
Service commitment for after-sales:
1, One year warranty, Life - Long maintenance service.
2, Free installation, debugging operation,maintenance and training for the operation and maintenancepersons by vedio / Tel / Email or engineers visiting in factory.
3, Providing free upgraded available software
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
Before Order :
*Choose the right Model
*Confirm your electric power supply ( Voltage, frequency and phase)
*Confirm the beveling angel required
*Confirm the welding joint required (U, V, Double V or Compound preparation)
*Advise your pipe material ( Carbon steel, stainless steel or others)
*Other special demands about machine
*The spare parts needed
*If the pipe wall thickness more than 30mm, inform us in advance (Important)
